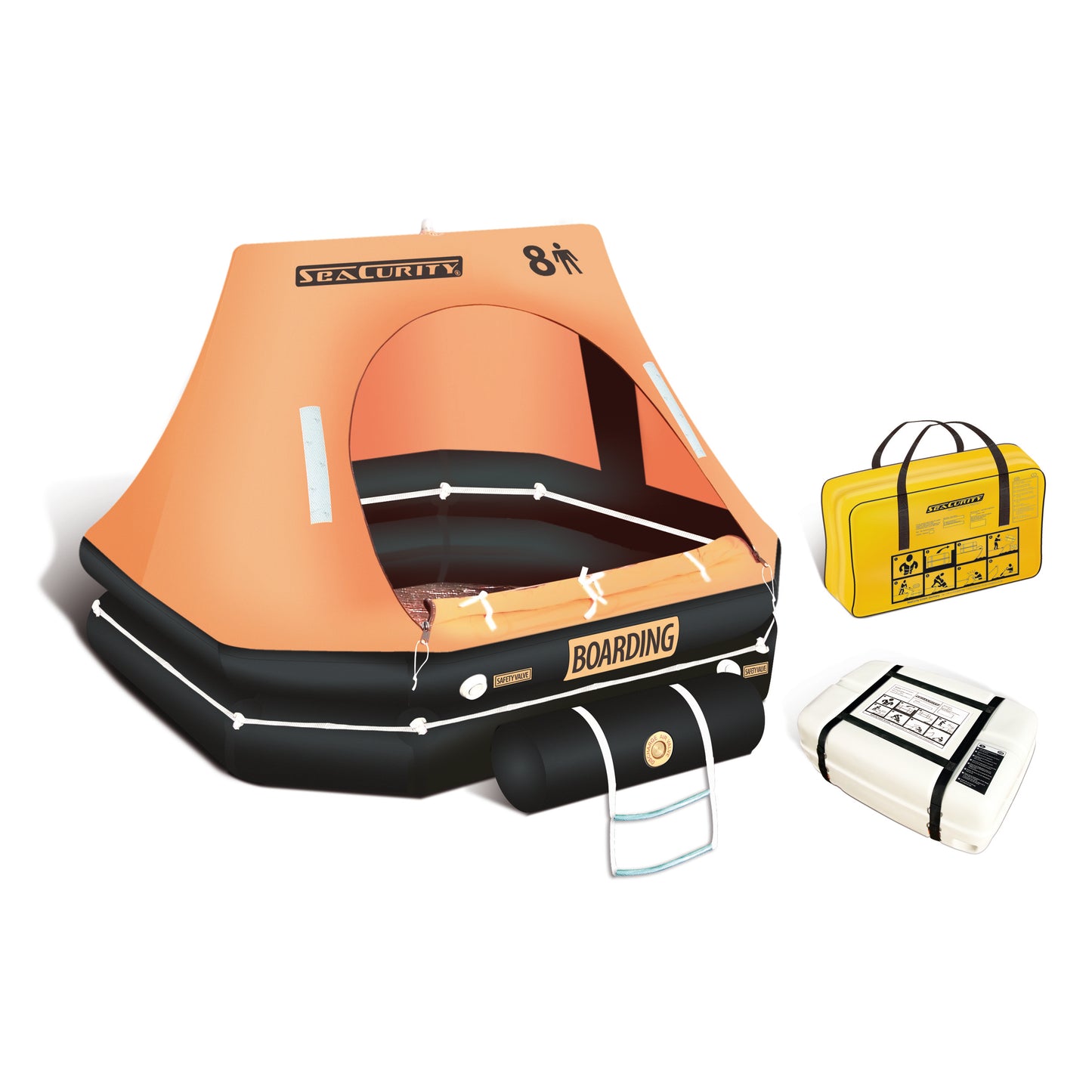

The SeaCurity offshore liferaft represents a real offshore island without compromise. Although this island is not ISO 9650 certified, it meets all the requirements of this standard.
We have been able to significantly reduce the weight of the offshore island from the 2013 model year by using lighter material for the buoyancy bodies, a lighter cylinder and a lighter container. This means that we can now offer you one of the lightest life rafts on the market without having to forego crucial safety features. The dimensions of the bags/containers have also become smaller as a result.
Due to the significant weight savings, the 10 and 12 person islands are also easier to handle.
The octagonal shape of the island, which ensures better behavior in waves, has been retained.
The island consists of a three-chamber system: two inflation bodies lying one on top of the other and an arc-shaped inflation body that holds the weather protection roof. The standard equipment and the emergency equipment make this island a real offshore island.
The maintenance interval is 3 years because the island is also vacuum-packed in the bag or container.
Specification:
-
SOLAS tested material for the buoyancy body, weather protection roof, reflective strips and inflation system
-
4 x anti-capsize bags with a total capacity of 220 l
-
Inflatable boarding ramp for easier entry
-
interior light and exterior light
-
ventilation slot
-
lookout window
-
rainwater collection system
-
Thermo-insulated floor
-
sea anchor
-
vacuum packed
-
External and internal tethers
-
2 x Pressure Relief Valves, 3 x Inflation/Deflation Valves
-
2 x Owner's Manuals (one packed in the island, one for the owner)
-
Improved GRP container with closable openings for draining condensed water
-
Lifebuoy with 30 m line
-
Strap below the floor to be able to erect the island in an emergency
-
Floating knife
-
Instruction panel (pictogram) on the headlining
-
6 seasickness tablets per person
- An emergency kit that includes the following items:
-
3 x hand torch,
-
1 * Flashlight
-
1 x hand pump
-
1 * oet barrel
-
2 * Sponge
-
1 * Whistle
-
1 * Bellows
-
1 x set of leak plugs
-
1 x signal mirror
-
1 x pair of paddles,
-
1 x fishing gear,
-
1 * Drinking Vessel
-
1 x repair kit
Item No. |
capacity/package type |
Dim. Island L x W x H in mm |
Dim. packaging L x W x H in mm |
Weight in kg |
53201 |
4 p., bag |
1600x1600x1150 |
650x300x380 |
24 |
53202 |
4 people, cont. |
1600x1600x1150 |
760x480x280 |
28 |
53203 |
6 p., bag |
1880x1880x1200 |
650x320x400 |
28 |
53204 |
6 p., Cont. |
1880x1880x1200 |
760x480x310 |
33 |
53205 |
8 p., bag |
2100x2100x1250 |
670x340x440 |
33 |
53206 |
8 p., Cont. |
2100x2100x1250 |
760x520x310 |
38 |
53207 |
10 p., bag |
2550x2550x1400 |
700x350x480 |
38 |
53208 |
10 P. Cont. |
2550x2550x1400 |
780x545x345 |
44 |
53209 |
12 P. Cont. |
2750x2750x1450 |
810x560x320 |
48 |
